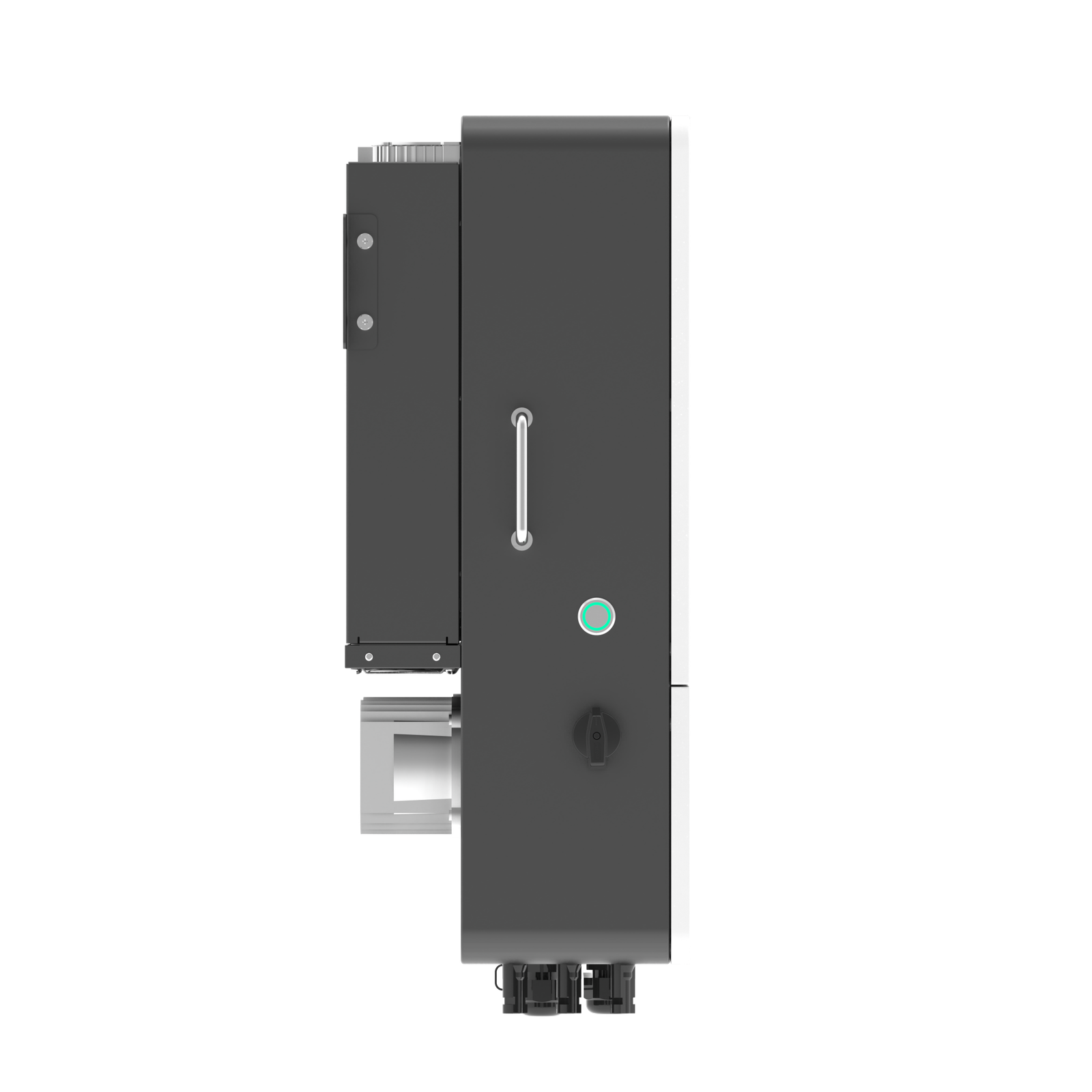

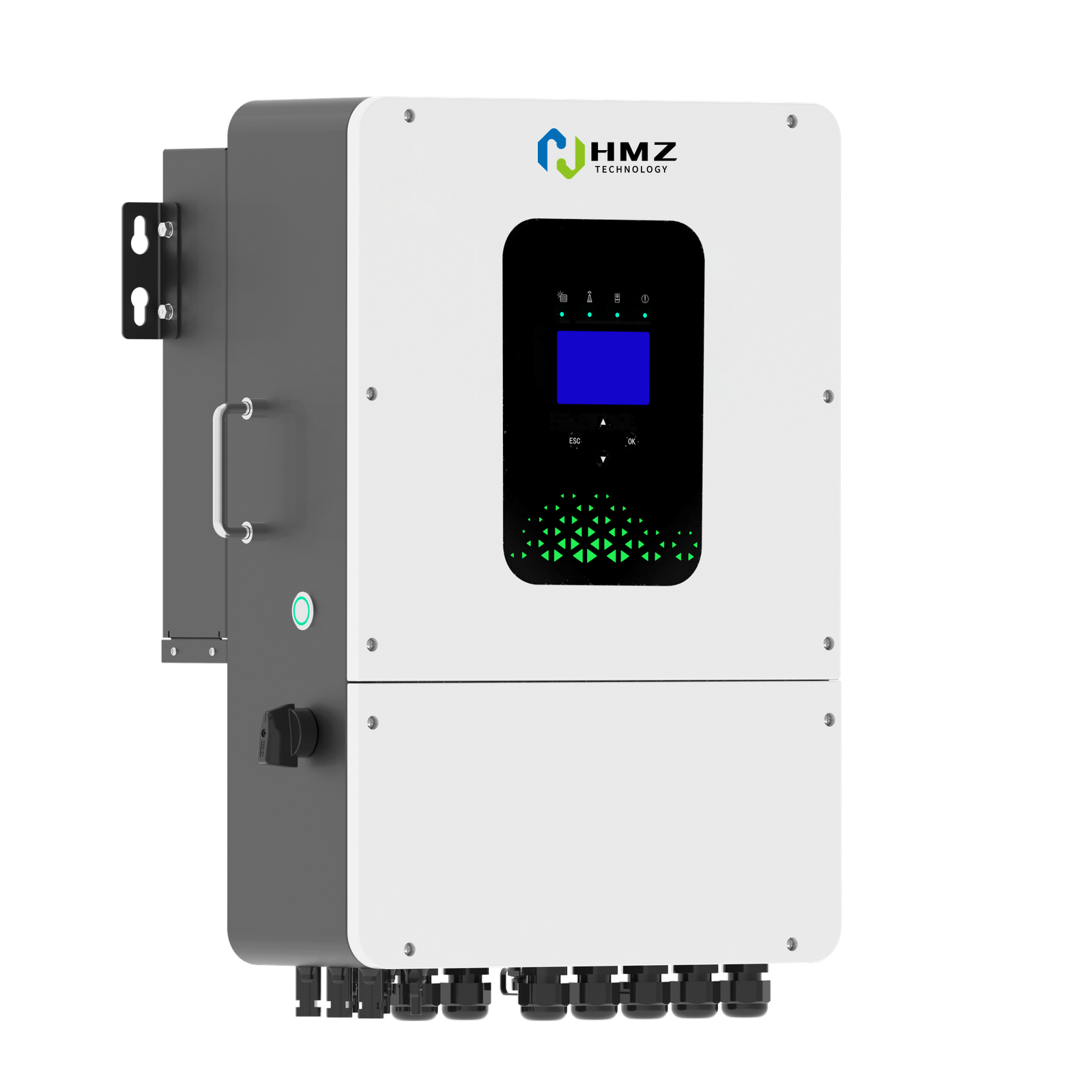

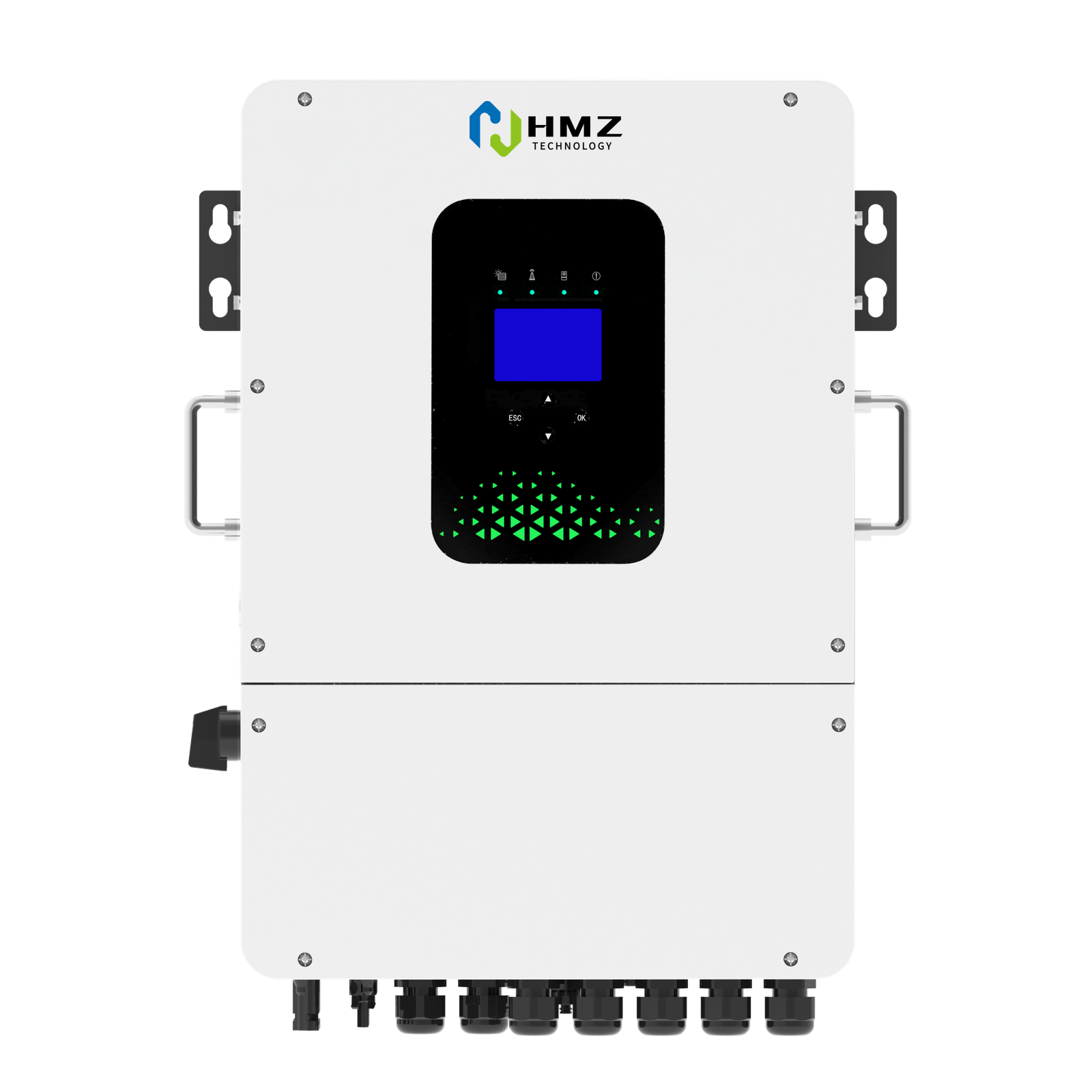

HMZ Single Phase Hybrid Inverter-EU-IP65 6K/8K/10K/12K

The HMZ Single Phase Hybrid Inverter-EU-IP65 is designed for residential and small commercial solar energy storage systems. Available in 6K, 8K, 10K and 12K models, this inverter series supports solar PV input, battery storage, grid connection, backup load output and diesel generator charging, making it suitable for home backup power, solar self-consumption, off-grid operation and unstable-grid applications.

With fast grid-to-off-grid switching within 10 ms, intelligent air-cooling design, IP65 protection and WiFi APP monitoring, the HMZ hybrid inverter helps users improve power reliability and reduce dependence on unstable grid power or diesel generators. It can be matched with low-voltage lithium batteries or lead-acid batteries to build a flexible solar storage system for homes, shops, offices, clinics, farms and light commercial sites.

Product Overview

Item	Description
Product Name	HMZ Single Phase Hybrid Inverter-EU-IP65
Available Models	HMZ-P1M6K-EU / HMZ-P1M8K-EU / HMZ-P1M10K-EU / HMZ-P1M12K-EU
Power Options	6K / 8K / 10K / 12K
Grid Type	Single Phase
Battery Type	Lead-acid or Li-ion
Battery Voltage Range	40–60V
PV Input Voltage Range	370V, 125–500V
MPPT Range	150–425V
Monitoring	WiFi APP / PC Cloud Monitoring
Communication with BMS	RS485 / CAN
Protection Degree	IP65
Cooling Method	Smart Air Cooling
Installation Style	Wall-mounted
Generator Support	Compatible with diesel generators for battery charging and backup power supply
Application	Home solar storage, backup power, off-grid solar, weak-grid areas, small commercial energy storage

Key Features

Feature	Customer Value
6K / 8K / 10K / 12K Options	Covers different residential and small commercial power requirements.
Single Phase Hybrid Design	Supports solar PV, battery storage, grid power and backup load output.
Low-Voltage Battery Platform	Compatible with 40–60V lead-acid or Li-ion battery systems.
Fast Switching Time	Grid-to-off-grid switching time is less than 10 ms for uninterrupted power support.
Diesel Generator Compatibility	Supports diesel generator connection for battery charging and backup power supply.
Flexible Charging Modes	Supports configuration of up to 6 battery charging time periods and cut-off thresholds.
Smart Load Management	Supports smart load management, CT sensing, ATS support and optional 4G/GPRS remote connectivity.

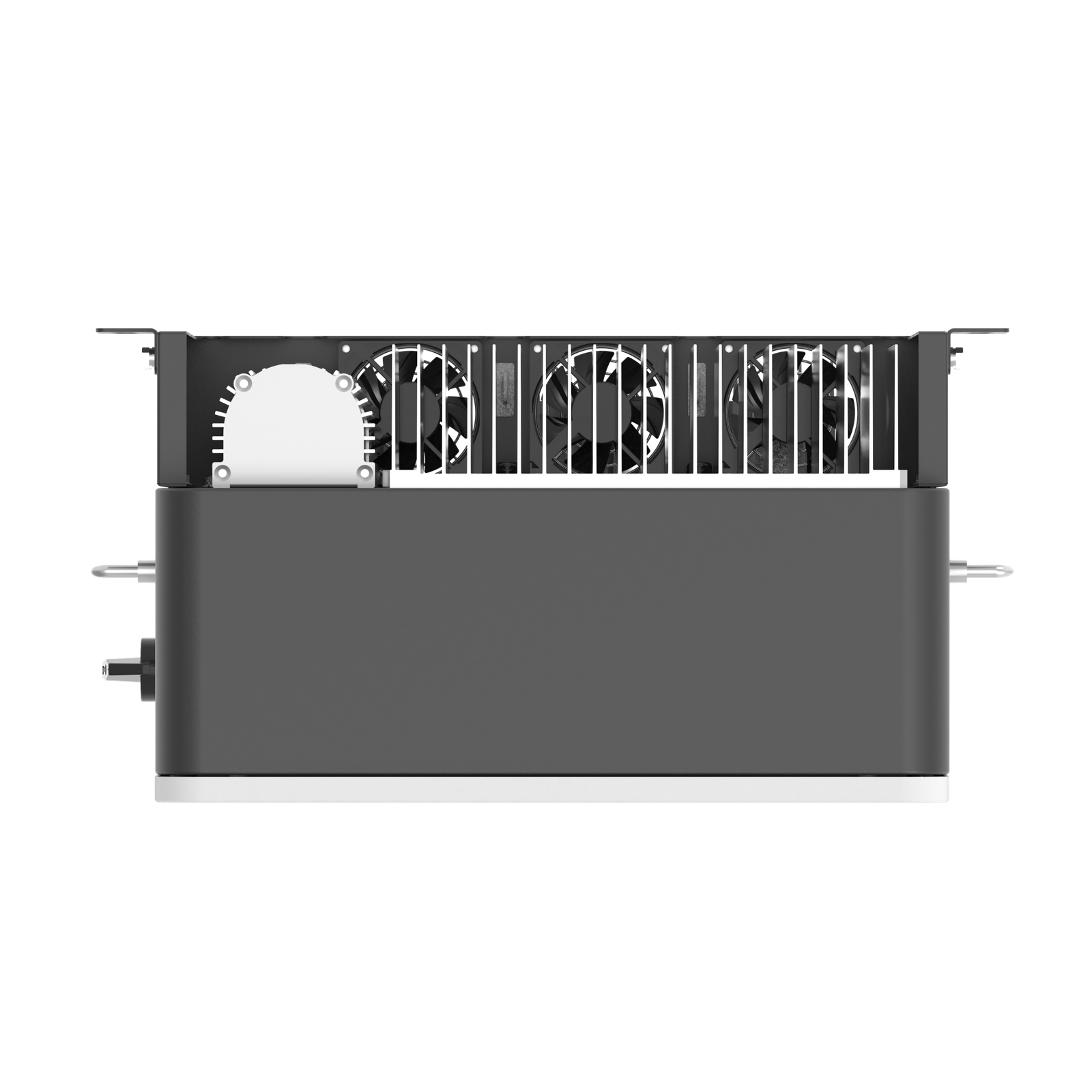

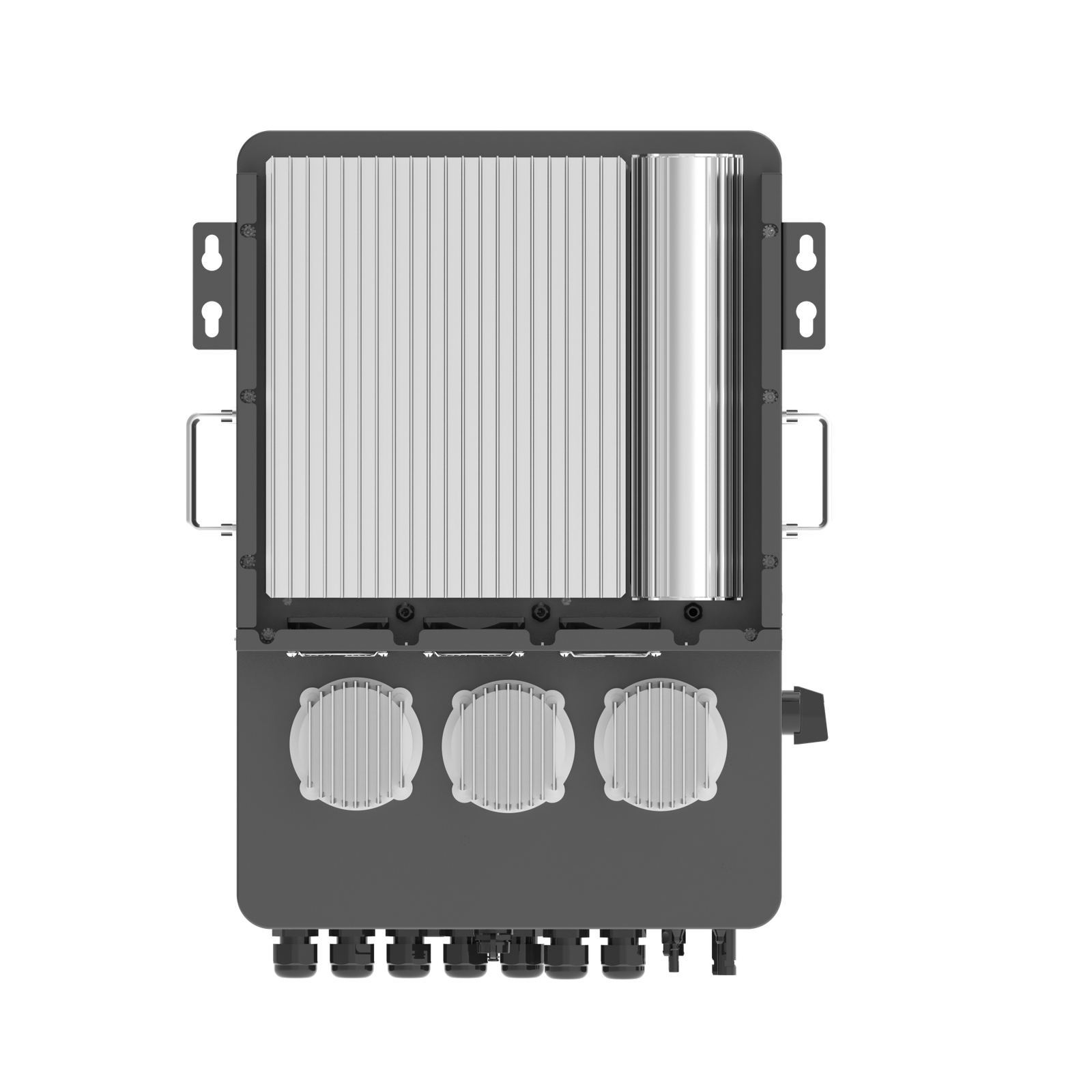

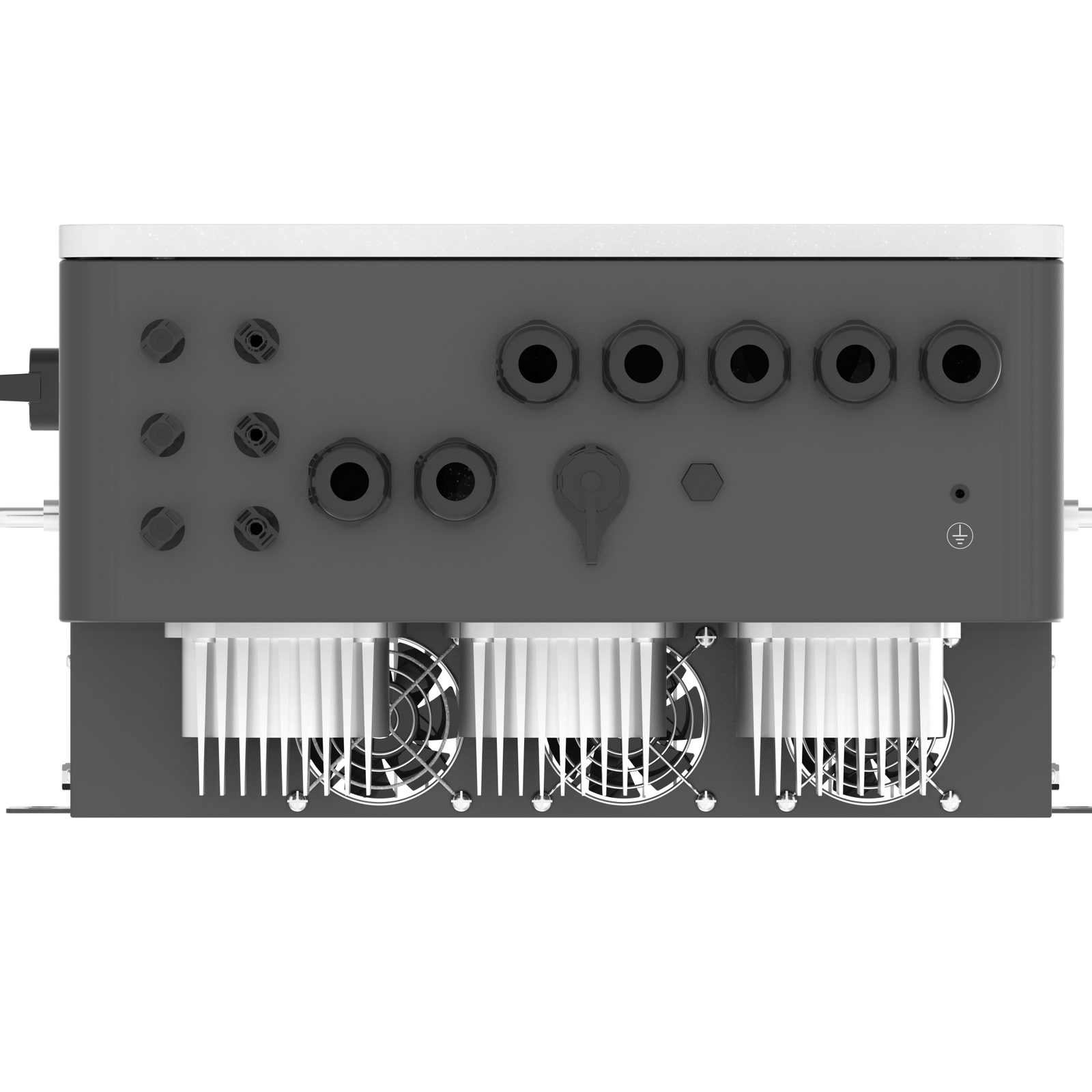

Intelligent Cooling	High-efficiency intelligent air-cooling helps improve inverter service life.
Integrated Communication	Built-in RS485, CAN and WiFi communication for battery and system monitoring.
IP65 Protection	Suitable for flexible installation environments and demanding application conditions.

Technical Parameters

Parameter	HMZ-P1M6K-EU	HMZ-P1M8K-EU	HMZ-P1M10K-EU	HMZ-P1M12K-EU
Rated AC Output and UPS Power	6000W	8000W	10000W	12000W
Max. AC Output Power	6000VA	8800VA	11000VA	13200VA
AC Input / Output Rated Current	27.3A / 26.1A	36.4A / 34.8A	45.5A / 43.5A	54.6A / 52.2A
Max. AC Input / Output Current	30A / 28.7A	40A / 38.3A	50A / 47.9A	60A / 57.4A
Max. Continuous AC Passthrough	40A	50A	60A	70A
Grid Type	Single Phase	Single Phase	Single Phase	Single Phase
Battery Type	Lead-acid or Li-ion	Lead-acid or Li-ion	Lead-acid or Li-ion	Lead-acid or Li-ion
Battery Voltage Range	40–60V	40–60V	40–60V	40–60V
Max. Charging Current	135A	190A	220A	250A
Max. Discharging Current	135A	190A	220A	250A
Max. DC Input Power	9000W	12000W	13000W	15000W
PV Input Current	18+18A	26+26A	26+26+26A	26+26+26A
Max. PV Isc	27+27A	34+34A	34+34+34A	34+34+34A
Number of MPPT Trackers	2	2	3	3
Strings per MPPT Tracker	1+1	1+1	1+1+1	1+1+1
PV Input Voltage	370V, 125–500V	370V, 125–500V	370V, 125–500V	370V, 125–500V
MPPT Range	150–425V	150–425V	150–425V	150–425V
Full Load DC Voltage Range	300–425V	300–425V	300–425V	300–425V
Start-up Voltage	125V	125V	125V	125V
Peak Power	Double rated power for 10 seconds	Double rated power for 10 seconds	Double rated power for 10 seconds	Double rated power for 10 seconds
Output Frequency and Voltage	50/60Hz; 220/230Vac	50/60Hz; 220/230Vac	50/60Hz; 220/230Vac	50/60Hz; 220/230Vac
Efficiency	Max. 97.60%; Euro 96.50%; MPPT >99%	Max. 97.60%; Euro 96.50%; MPPT >99%	Max. 97.60%; Euro 96.50%; MPPT >99%	Max. 97.60%; Euro 96.50%; MPPT >99%
DC Current Injection	<0.5% In	<0.5% In	<0.5% In	<0.5% In
Total Harmonic Distortion	<3% of nominal power	<3% of nominal power	<3% of nominal power	<3% of nominal power
Grid Regulation	IEC62116, IEC61727	IEC62116, IEC61727	IEC62116, IEC61727	IEC62116, IEC61727
EMC / Safety Regulation	EN61000-6-2/-4, EN62109-1, EN62109-2	EN61000-6-2/-4, EN62109-1, EN62109-2	EN61000-6-2/-4, EN62109-1, EN62109-2	EN61000-6-2/-4, EN62109-1, EN62109-2
Communication with BMS	RS485 / CAN	RS485 / CAN	RS485 / CAN	RS485 / CAN
Monitoring Mode	WiFi APP / PC Cloud Monitoring	WiFi APP / PC Cloud Monitoring	WiFi APP / PC Cloud Monitoring	WiFi APP / PC Cloud Monitoring
Optional Communication	4G / GPRS module	4G / GPRS module	4G / GPRS module	4G / GPRS module
Protection Degree	IP65	IP65	IP65	IP65
Cooling	Smart Cooling	Smart Cooling	Smart Cooling	Smart Cooling
Noise	<50dB	<50dB	<50dB	<50dB
Operating Temperature Range	-40°C to +60°C; derating above 45°C	-40°C to +60°C; derating above 45°C	-40°C to +60°C; derating above 45°C	-40°C to +60°C; derating above 45°C
Installation Style	Wall-mounted	Wall-mounted	Wall-mounted	Wall-mounted
Net Weight	22kg	25.5kg	36kg	36kg
Gross Weight	26kg	29kg	39kg	39kg
Cabinet Size	490 × 340 × 256.2mm	560 × 340 × 257mm	629.9 × 430 × 256mm	629.9 × 430 × 256mm
Outer Box Dimensions	680 × 440 × 340mm	680 × 440 × 340mm	760 × 530 × 340mm	760 × 530 × 340mm

System Application

Application Scenario	Recommended Model	How It Helps
Entry-Level Home Backup	6K	Supports essential loads such as lighting, router, TV, fans and small appliances.
Home Solar Storage	6K / 8K	Improves solar self-consumption and provides backup power during outages.
Small Shop Backup	6K / 8K	Keeps POS systems, lighting, routers, cameras and small equipment running.
Office Backup Power	8K	Supports computers, communication devices, lighting and basic office loads.
Clinic / Pharmacy	8K / 10K	Provides backup power for essential lighting, communication and selected equipment.
Larger Home Backup	10K	Supports higher household load and longer backup time with matched battery capacity.
Small Commercial Use	10K / 12K	Suitable for higher-load small business and light commercial applications.
Africa Weak-Grid Market	6K / 8K / 10K / 12K	Helps reduce outage impact and diesel generator running time.

Recommended Battery Matching

Inverter Model	Suggested Battery Capacity	Application
HMZ-P1M6K-EU	5.12kWh / 10.24kWh	Entry-level homes, small shops and basic backup power
HMZ-P1M8K-EU	10.24kWh / 15.36kWh / 16.07kWh	Larger homes, offices, clinics and small businesses
HMZ-P1M10K-EU	15.36kWh / 20.48kWh or higher	Higher-load residential and small commercial applications
HMZ-P1M12K-EU	20.48kWh or higher	Higher-load home backup, small commercial and weak-grid projects

Matching Logic

The HMZ Single Phase Hybrid Inverter-EU-IP65 series supports a 40–60V battery voltage range, making it suitable for 48V / 51.2V low-voltage lead-acid or lithium battery systems. For residential and small commercial solar storage projects, this low-voltage platform is practical, flexible and widely used.

For basic backup applications, the 6K model can be matched with 5.12kWh or 10.24kWh battery storage. For longer backup time and higher load demand, the 8K, 10K and 12K models can be matched with larger LiFePO4 battery systems such as 15.36kWh, 20.48kWh or customized battery banks.

The inverter supports CAN and RS485 communication for lithium battery BMS integration. It also supports WiFi APP / PC cloud monitoring, allowing users to view system status and manage operation more conveniently. For weak-grid or off-grid areas, diesel generator compatibility provides an additional backup charging option.

FAQ

What models are available for the HMZ Single Phase Hybrid Inverter-EU-IP65?

The HMZ Single Phase Hybrid Inverter-EU-IP65 is available in 6K, 8K, 10K and 12K models, covering different residential and small commercial power requirements.

What battery voltage does this inverter support?

The inverter supports a 40–60V battery voltage range, which is suitable for 48V / 51.2V low-voltage battery systems.

Can this inverter work with lithium batteries?

Yes. The inverter supports lead-acid and Li-ion batteries. For lithium battery systems, CAN and RS485 communication can be used for BMS integration.

Does the inverter support diesel generator connection?

Yes. The inverter is compatible with diesel generators for battery charging and backup power supply, which is useful for weak-grid and off-grid applications.

How fast is the grid-to-off-grid switching time?

The grid-to-off-grid switching time is less than 10 ms, helping provide uninterrupted power support for important loads.

Does the inverter support remote monitoring?

Yes. The inverter supports WiFi APP / PC cloud monitoring, and optional 4G/GPRS module can be used for remote connectivity.

Is this inverter suitable for the African market?

Yes. It is suitable for African homes, shops, offices, clinics, farms and small commercial sites where grid power is unstable or diesel generator costs are high.

What is the protection level of this inverter?

The inverter has IP65 protection, supporting more flexible installation environments.

Which model should I choose?

For basic home backup, the 6K model is usually enough. For larger homes, offices or small shops, the 8K model is more suitable. For higher-load homes and small commercial applications, 10K or 12K models are recommended.

Can HMZ provide a complete solar storage system solution?

Yes. HMZ can provide customized solar storage system solutions, including inverter selection, battery capacity matching, PV module design, monitoring options and complete system configuration according to your project requirements.
