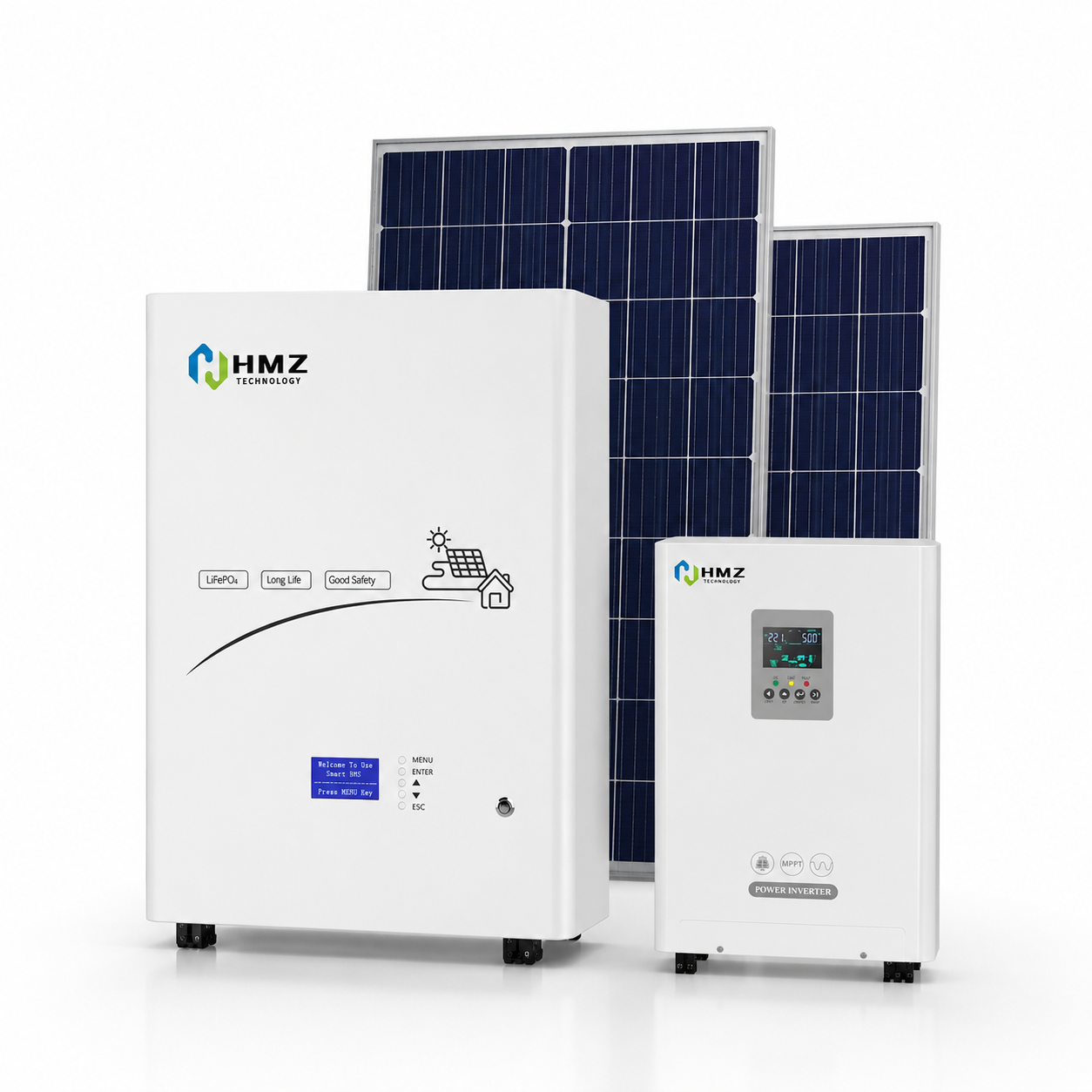

The HMZ 5kW/5.12kWh Home Solar Storage System combines a 5kW wall-mounted single-phase hybrid inverter with a 5.12kWh LiFePO4 battery. Designed for residential and small commercial backup power, the system supports MPPT solar charging, pure sine wave AC output and 48V low-voltage battery storage for daily solar self-consumption and emergency power supply.
The HMZ 5kW/5.12kWh Home Solar Storage System is an entry-level residential solar storage solution designed for small homes, offices, shops, clinics and basic backup power applications. The system combines a 5kW wall-mounted single-phase hybrid inverter with a 5.12kWh LiFePO4 battery, providing reliable solar energy storage and backup power for daily essential loads.
With MPPT solar charging, pure sine wave AC output and a 48V low-voltage battery system, this solution is suitable for areas with unstable grid power, frequent power outages or high diesel generator costs. It helps users improve solar self-consumption, reduce grid dependence and maintain power supply for important electrical loads.
| Item | Description |
| Product Name | HMZ 5kW/5.12kWh Home Solar Storage System |
| System Type | Home Solar Storage System |
| System Configuration | 5kW Hybrid Inverter + 5.12kWh LiFePO4 Battery |
| Inverter Type | Wall-mounted single-phase PV energy storage inverter / Hybrid inverter |
| Battery Type | LiFePO4 lithium battery |
| Battery Voltage | 48VDC low-voltage battery system |
| Solar Charging | Built-in MPPT solar charging |
| Output Waveform | Pure sine wave |
| Installation | Wall-mounted inverter + wall-mounted battery |
| Application | Residential backup power, small shop backup, office backup, off-grid solar system |
| Recommended Market | Africa, Southeast Asia, Middle East and unstable-grid areas |
| System Component | Configuration | Function |
| Hybrid Inverter | 5kW single-phase wall-mounted inverter | Converts solar and battery power into AC power |
| Battery Storage | 5.12kWh LiFePO4 battery | Stores solar energy and provides backup power |
| PV Input | Supports MPPT solar charging | Improves solar energy utilization |
| AC Output | Single-phase AC output | Supplies household or small commercial loads |
| Communication | RS485 / RS232 / CAN optional for battery | Supports battery and system communication |
| Monitoring | WiFi / 4G / Bluetooth optional depending on configuration | Supports system monitoring and operation management |
| Item | Specification |
| Selected Inverter | 5kW class HMZ wall-mounted single-phase solar energy storage inverter |
| Product Type | Wall-mounted single-phase PV energy storage inverter / Hybrid inverter |
| Output Type | Single-phase AC output |
| Battery Voltage | 48VDC low-voltage battery system |
| Solar Charging | Built-in MPPT solar charging |
| Rated Solar Input Voltage | 360VDC |
| MPPT Tracking Voltage Range | 120V–450VDC |
| Max Input Voltage at Lowest Temperature | 500V |
| Maximum Input Power | 5500W |
| Number of MPPT Tracking Paths | 1 path |
| DC Input Voltage Range | 42V–60VDC |
| Rated Mains Input Voltage | 220VAC / 230VAC / 240VAC |
| Grid Input Voltage Range | 170VAC–280VAC UPS Mode / 120VAC–280VAC Inverter Mode |
| Grid Input Frequency Range | 45Hz–55Hz / 55Hz–65Hz |
| Inverter Output Efficiency | 94% Max. |
| Inverter Output Voltage | 220VAC ±2% / 230VAC ±2% / 240VAC ±2% |
| Inverter Output Frequency | 50Hz ±0.5Hz or 60Hz ±0.5Hz |
| Output Waveform | Pure sine wave |
| Grid Output Efficiency | >99% |
| Max Mains Charging Current | 60A |
| Max Solar Charging Current | 100A |
| Max Charging Current Grid + Solar | 100A |
| Optional Operation Mode | Grid priority / Solar priority / Battery priority |
| Item | Specification |

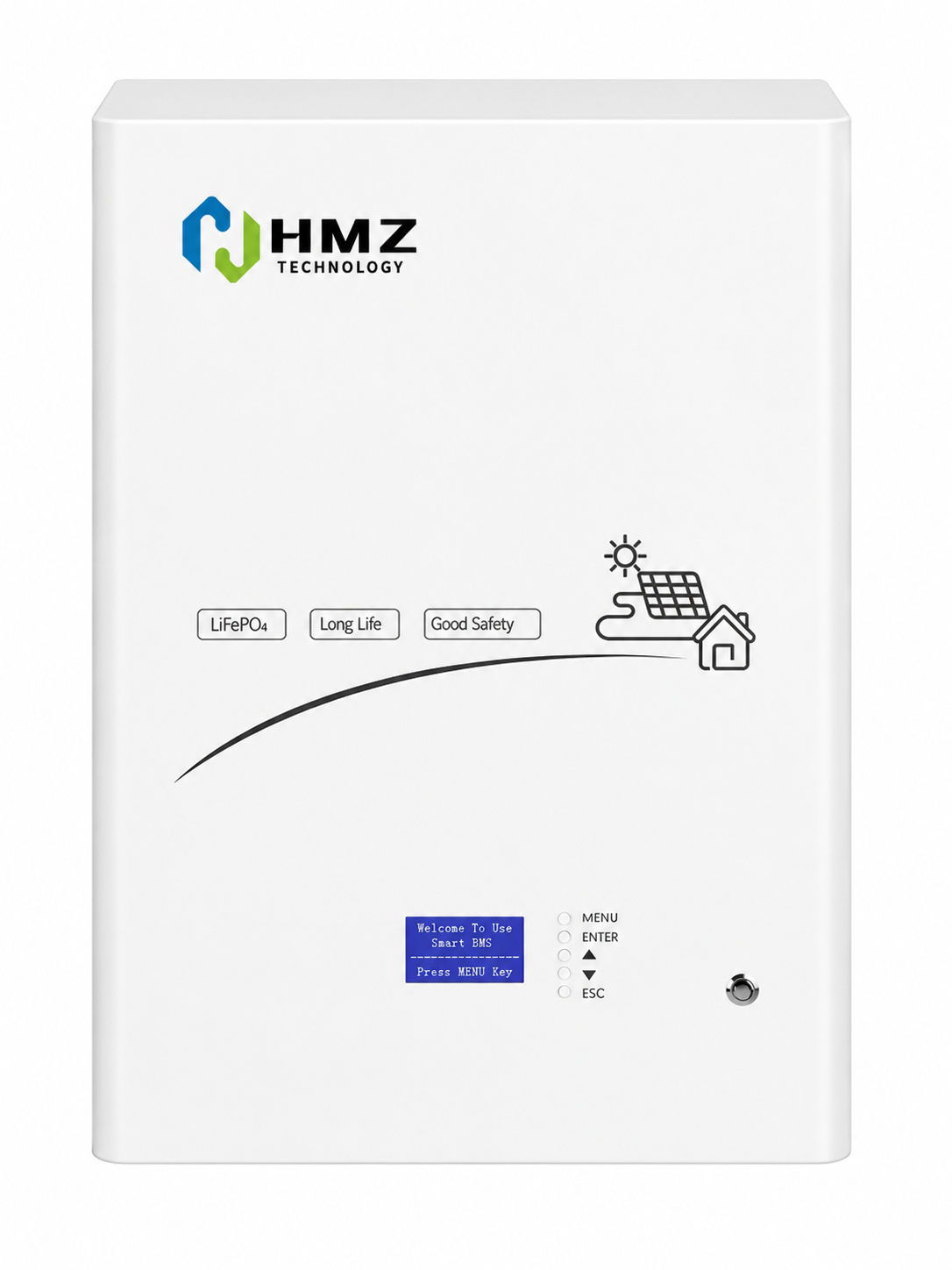

| Selected Storage | 5.12kWh LiFePO4 Battery Storage |
| Battery Product Type | Wall-mounted lithium battery |
| Battery Model Series | 48100 |
| Specification | 51.2V 100Ah |
| Cell Configuration | 16S1P |
| Energy | 5.12kWh |
| Battery Type | LiFePO4 lithium battery |
| Standard Discharge Current | 50A |
| Max Discharge Current | 100A |
| Working Voltage Range | 43.2V–57.6VDC |
| Standard Voltage | 51.2VDC |
| Max Charging Current | 50A |
| Max Charging Voltage | 57.6V |
| Recommended DOD | 80% DOD / 25°C / 0.5C |
| Cycle Life | 6000 cycles |
| Operating Temperature | -10°C to 50°C |
| Working Humidity | 20–80% RH |
| Operating Altitude | ≤2500m |
| Cooling Method | Natural cooling |
| Installation Type | Wall-mounted installation |
| Protection Level | IP20 |
| Service Life | 5–10 years |
| Communication | Default RS485 / RS232 / CAN optional / WiFi / 4G / Bluetooth |
| Certification | CE / ROHS / FCC / UN38.3 / MSDS |
| Item | System Value |
| System Power | 5kW inverter output |
| Battery Capacity | 5.12kWh |
| Battery Voltage Platform | 48V low-voltage system |
| Recommended Use | Essential load backup and basic solar storage |
| Backup Load Type | Lighting, router, TV, computer, fan, monitoring system, small appliances |
| Solar Charging | MPPT solar charging |
| Output Quality | Pure sine wave AC output |
| Expansion Capability | Battery can be expanded through parallel connection |
| Best Application | Small homes, offices, clinics, shops and unstable-grid areas |
| Scenario | How the System Helps |
| Small Home Backup Power | Provides backup power for lighting, internet, TV and essential appliances during grid outages. |
| Small Shop Backup | Keeps POS systems, lighting, security cameras and small equipment running during power interruptions. |
| Office Backup Power | Supports computers, routers, lighting and basic office equipment. |
| Clinic or Pharmacy | Provides backup power for lighting, communication devices and essential small equipment. |
| Rural Home Solar System | Works with solar panels to reduce grid dependence and provide basic off-grid power. |
| Unstable-Grid Areas | Helps reduce the impact of frequent power outages. |
| Diesel Generator Saving | Reduces generator running time by using solar and battery power for light loads. |
| Advantage | Customer Value |
| Entry-Level Solar Storage Solution | Suitable for customers who need affordable backup power. |
| 5kW Hybrid Inverter | Supports common household and small commercial loads. |
| 5.12kWh LiFePO4 Battery | Provides reliable storage for essential backup power. |
| MPPT Solar Charging | Improves PV charging efficiency and solar utilization. |
| Pure Sine Wave Output | Supports stable operation for sensitive electrical equipment. |
| Wall-Mounted Design | Saves installation space and is suitable for residential applications. |
| Suitable for Africa Market | Designed for unstable-grid areas, backup power and solar self-consumption needs. |
| Flexible Working Modes | Supports grid priority, solar priority and battery priority operation. |
| Item | Recommendation |
| Inverter PV Input Power | Up to 5500W |
| Recommended PV Capacity | 4kW–5.5kW depending on site condition |
| PV Module Type | Mono / N-type solar module |
| Application Logic | PV supplies daytime loads first and charges battery with surplus energy |
| Design Note | PV configuration should be designed according to roof area, local irradiation and load profile |
| Time Period | System Operation |
| Daytime | Solar power supplies loads first and charges the battery with surplus energy. |
| Evening | Battery discharges to support essential household loads. |
| Grid Outage | Inverter switches to battery power to support selected backup loads. |
| Low Solar Day | Grid or generator can support charging depending on system setting. |
| High Electricity Cost Period | Battery can discharge to reduce grid electricity consumption. |
| Question | Answer |
| What is included in the HMZ 5kW/5.12kWh Home Solar Storage System? | The system includes a 5kW hybrid inverter and a 5.12kWh LiFePO4 battery. Solar panels can be matched according to project requirements. |
| Is this system suitable for whole-home backup? | It is more suitable for essential load backup. For whole-home backup or longer backup time, a larger battery capacity such as 10.24kWh or 15.36kWh is recommended. |
| Does the inverter support solar charging? | Yes. The inverter supports built-in MPPT solar charging with up to 5500W maximum input power. |
| What loads can this system support? | It can support lighting, router, TV, computer, fan, monitoring system and small household appliances. High-power loads should be checked according to actual power and starting current. |
| Is this system suitable for Africa? | Yes. It is suitable for areas with unstable grid power, frequent outages and high diesel generator costs. |
| Can HMZ help configure the solar panels and battery capacity? | Yes. HMZ can recommend PV capacity, battery capacity and inverter configuration according to the customer’s load demand and backup time requirement. |
HMZ Technology provides flexible solar energy storage solutions for residential, commercial and industrial applications. If you need a customized system configuration, our team can support inverter selection, battery capacity matching, PV module design, monitoring options and complete solar storage system integration according to your project requirements.
Whether you are planning a home backup power system, an off-grid solar project, a small commercial energy storage solution or a larger C&I solar storage system, welcome to contact HMZ Technology. We can provide tailored product recommendations and technical support based on your load demand, installation environment, backup time requirement and local grid conditions.
